PLL Detector for 4046 (CB25774E)

Details: Written by: Newton C. Braga

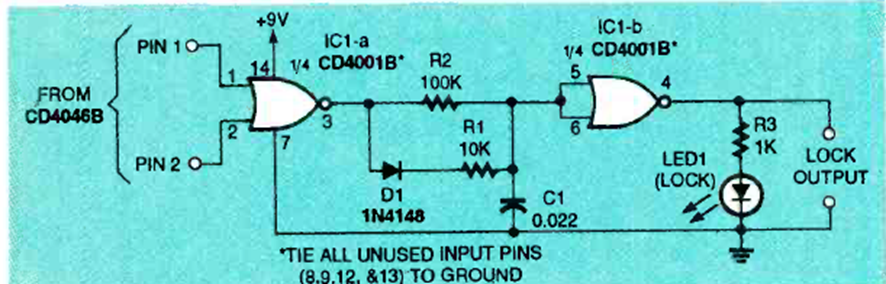

This circuit is used to detect PLL signals from the 4046 IC. The circuit is from an Electronics Now from October 1994. The indication is made through LEDs.

| Clique na imagem para ampliar |
