Time relay 4046 (CB25559E)

Details: Written by: Newton C. Braga

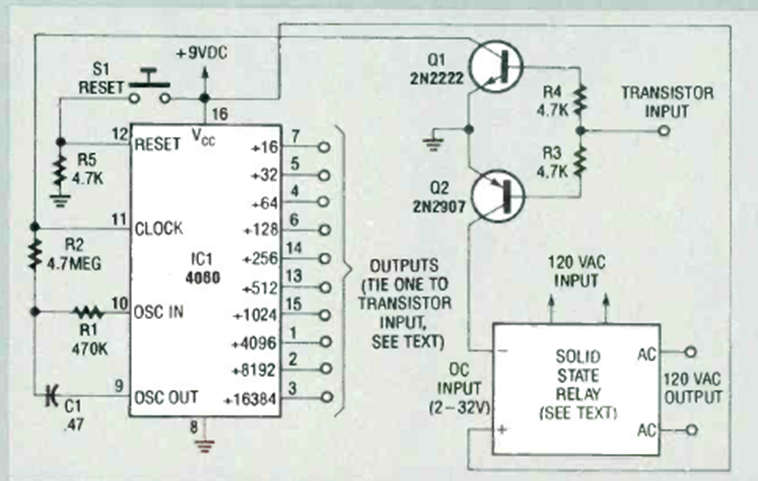

This circuit for very long-time intervals was found in the March 1993 Radio Electronics magazine. Times of several days or even weeks can be achieved depending on the value of C1.
