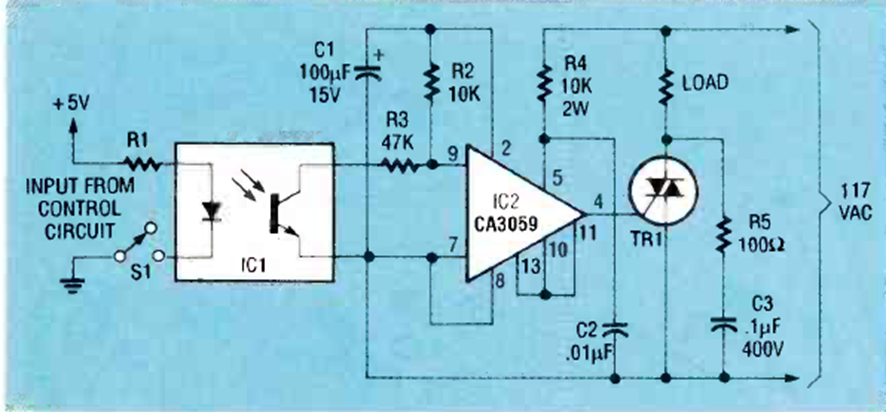

Synchronized Triac Control (CB25497E)

This circuit was found in the August 1992 issue of Radio Electronics magazine. The circuit can be used as an isolated shield for microcontrollers.
