Thermostat (CB25467E)

Details: Written by: Newton C. Braga

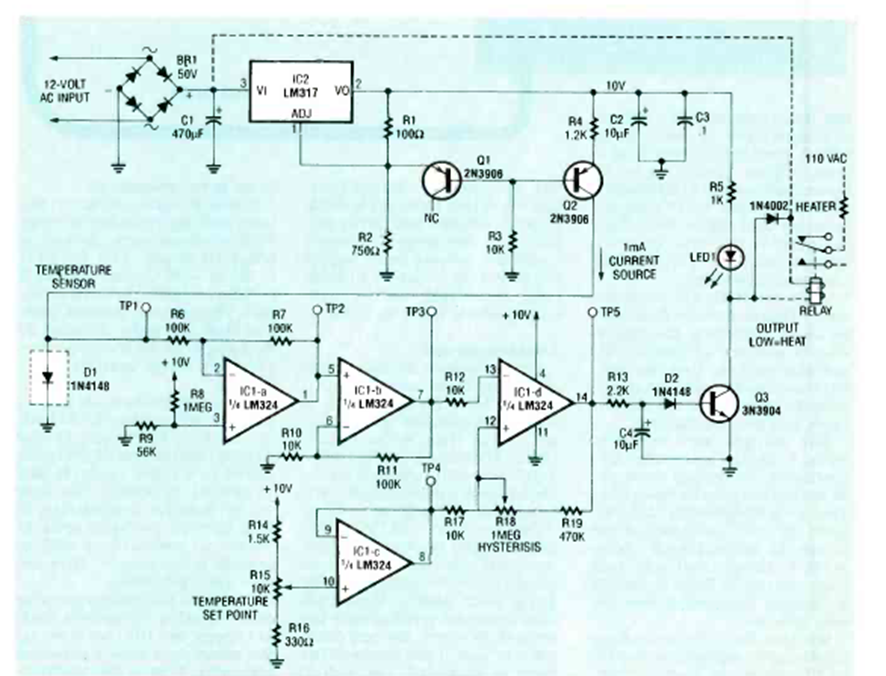

We found this circuit in the June 1992 issue of Radio Electronics magazine. The sensor is a common diode. The circuit is powered by the power grid from a 12 V transformer.
