FM Antenna Booster (CB25707E)

Details
Written by: Newton C. Braga

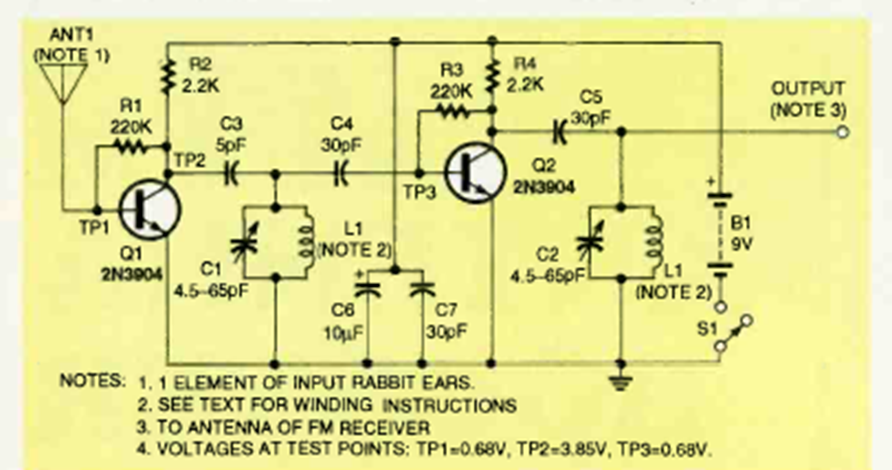

This tunable circuit was found in the May 1994 issue of Electronics Now magazine. The circuit has two amplification stages and excellent gain.
