BA1404 FM Stereo Transmitter (CB25473E)

Details
Written by: Newton C. Braga

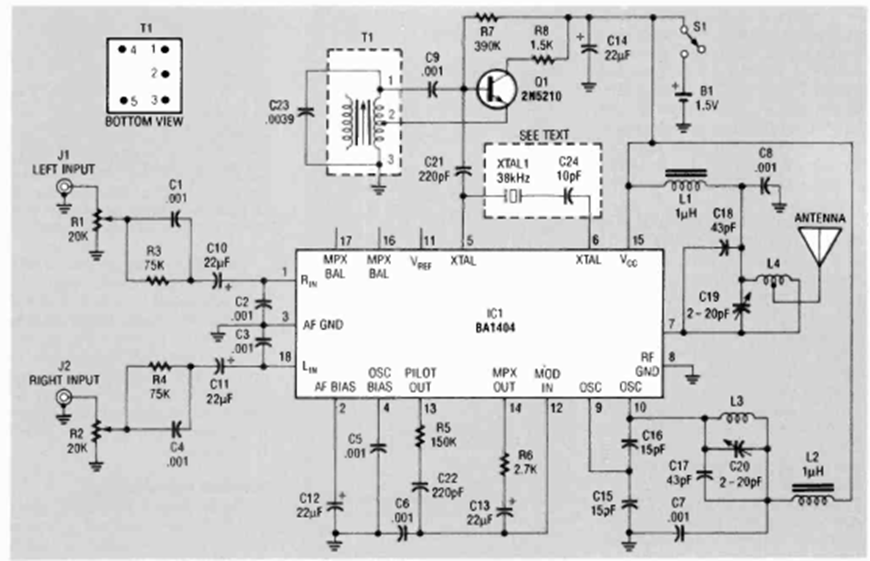

Based on the BA1404 integrated circuit, this circuit was found in the July 1992 issue of Radio Electronics magazine. The circuit is short range, but a power amplifier stage can be used.
