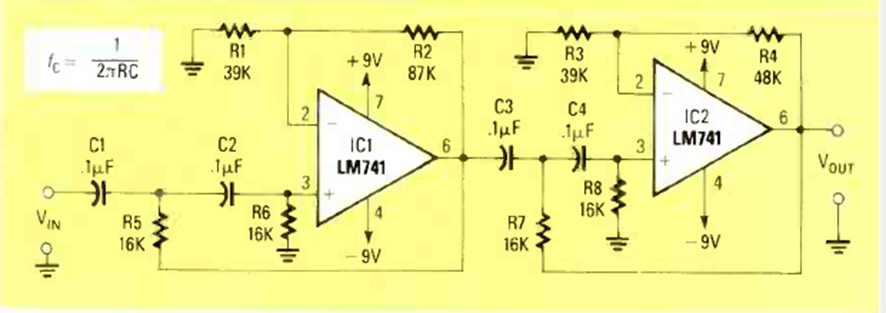

Fourth-order high-pass filter LM741 (CB25935E)

Details
Written by: Newton C. Braga



We found this circuit in the May 1989 Radio Electronics magazine. The circuit can have its values ​​changed to operate at other frequencies and the power supply must be symmetrical.
