733 or 592 Video Amplifier (CB25469E)

Details
Written by: Newton C. Braga

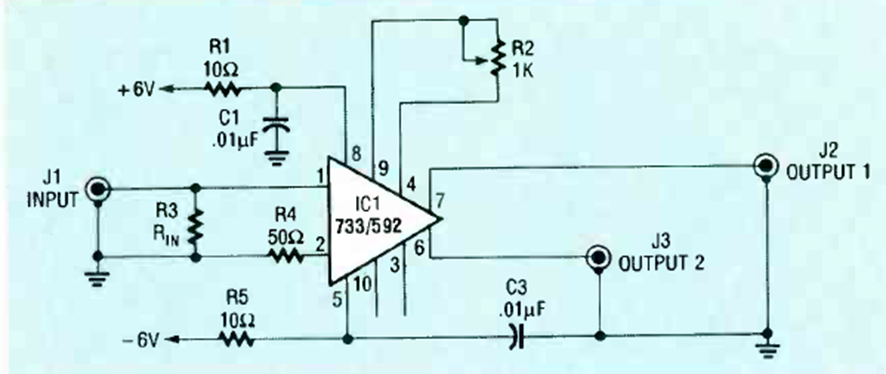

This circuit is from a June 1992 Radio Electronics. The circuit is for 4.5 MHz signals from old analog televisions or other similar applications.




| Clique na imagem para ampliar |
