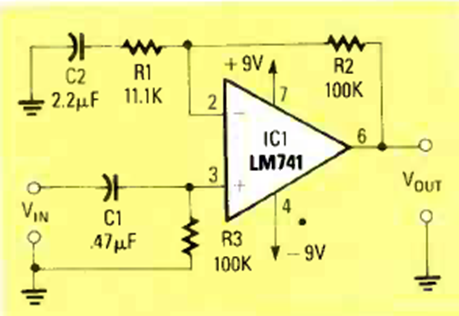

Non-inverting amplifier with LM741 (CB25921E)
- Details
- Written by: Newton C. Braga
From an article in Radio Electronics magazine, May 1989, this circuit requires a dual power supply. It is an amplifier for alternating signals with gain 10.
