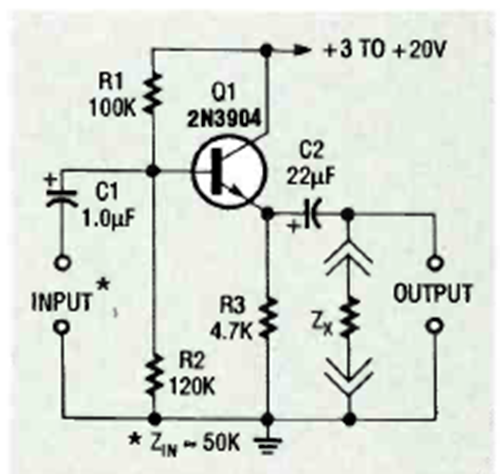

High Stability Emitter Follower (CB25618E)

Details
Written by: Newton C. Braga



We found this high input impedance, low output impedance amplification stage in the October 1993 issue of Electronics Now.
