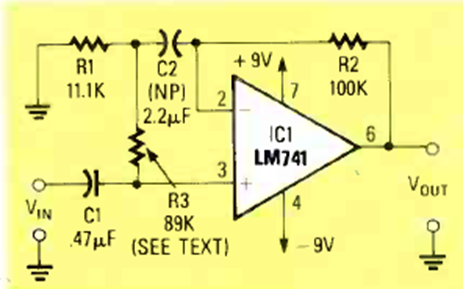

We found this amplifier with 50 MΩ input resistance in the May 1989 Radio Electronics magazine. The amplifier requires a dual power supply. The sum of R2 and R3 must be equal to R1.
Non-inverting AC amplifier with LM741 (CB25922E)
- Details
- Written by: Newton C. Braga
