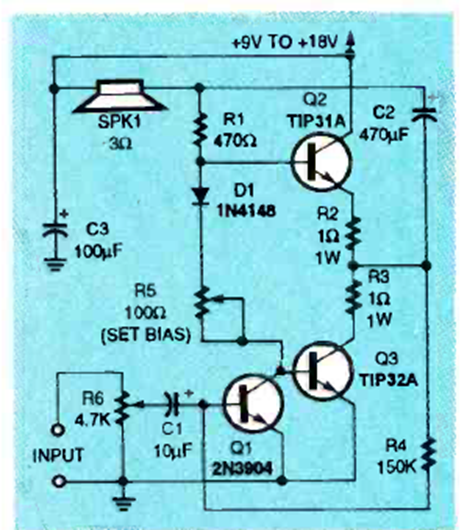

TIP31 and TIP32 1W Amplifier (CB25709E)

This small audio amplifier was found in the May 1994 issue of Electronics Now magazine. The power transistors must be mounted on heat sinks.
