Wireless Guitar (CB25579E)

Details
Written by: Newton C. Braga

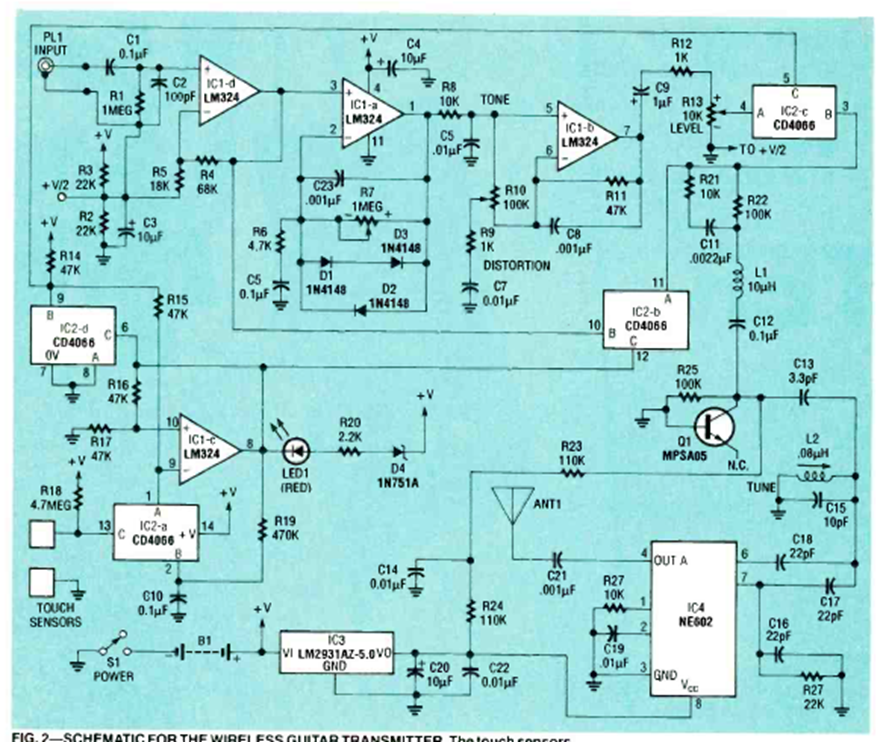

This sophisticated transmitter was found in the June 1993 issue of Electronics Now magazine. The transmitter consists of a dedicated integrated circuit of the time.
