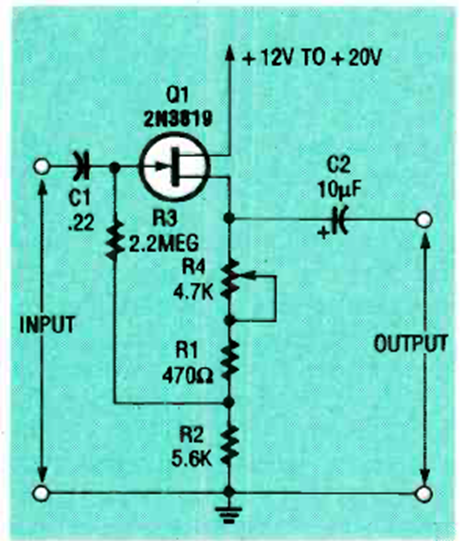

Self-biasing JFET circuit (CB25563E)

Details
Written by: Newton C. Braga



This JFET amplification stage was found in the April 1993 issue of Electronics Now. The input impedance is 10 Megohms.
