LM3914 Moving Point Voltmeter (CB25450S)

Details
Written by: Newton C. Braga

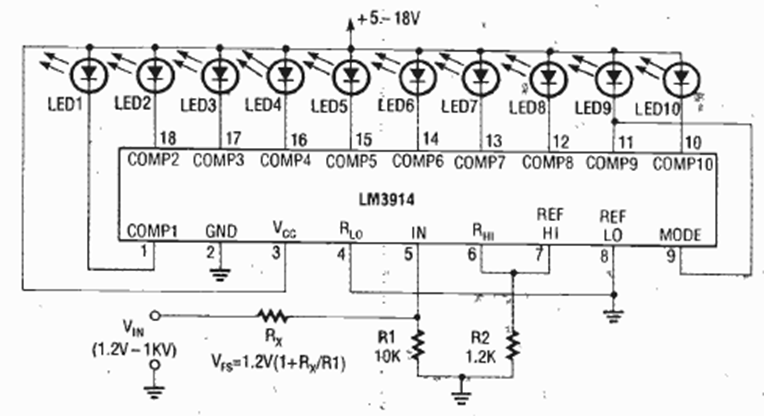

We found this circuit in the March 1992 issue of Radio Electronics magazine. The circuit has a range from 1.25 V to 1 kV. The formula for the voltage values ​​is given.




| Clique na imagem para ampliar |
