Linear Sawtooth Generator 555 (CB25539E)

Details: Written by: Newton C. Braga

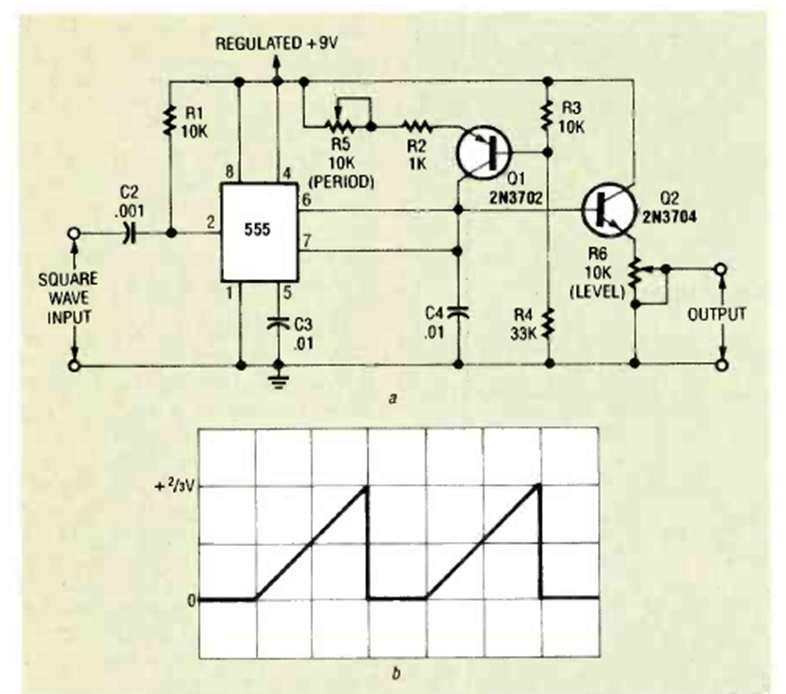

This circuit generates a linear sawtooth signal. The circuit was found in the December 1992 issue of Radio Electronics magazine. The maximum frequency is around 200 kHz

| Clique na imagem para ampliar |
