Variable-scale voltmeter from 1.25 to 10 V (CB25452E)

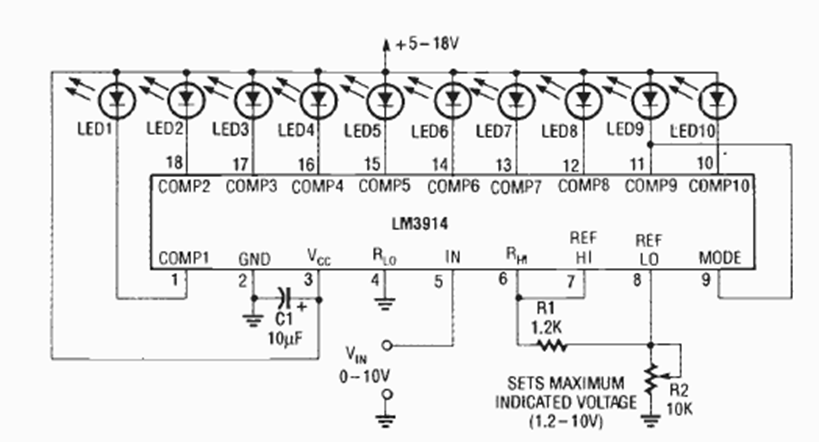

The circuit shown with the LM3914 was found in the March 1992 issue of Radio Electronics magazine. The circuit has a full-scale adjustment.

| Clique na imagem para ampliar |

Schmitt trigger oscillator (CB9628E)
This crystal configuration can be made with triggers of any logic. The frequency is given by the...
Temperature Sensor (CB6022E)
This circuit was obtained from an 80s factory manual. The integrated circuits used are uncommon...
Voltage Controlled Resistor (CB5347E)
We found this circuit in an old American documentation. It is an electronic rheostat with a...
