4046 Two-Phase VCO (CB25757E)

Details
Written by: Newton C. Braga

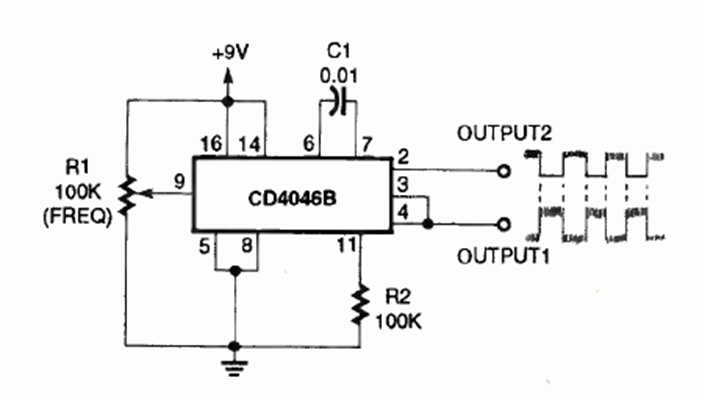

This circuit was found in the August 1994 issue of Electronics Now magazine. The 4046 is uncommon these days and the frequency range is given by C1.




| Clique na imagem para ampliar |
