555 Oscilloscope Time Base (CB25540E)

Details
Written by: Newton C. Braga

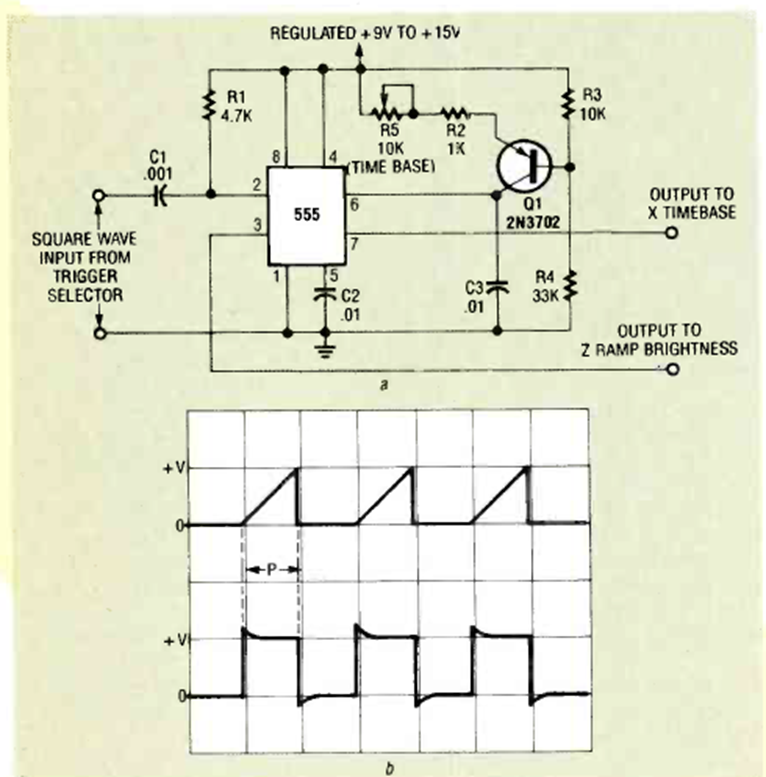

This circuit, which generates a linear sawtooth signal, can be used in a frequency-band oscilloscope. The circuit was found in the December 1992 issue of Radio Electronics magazine.




| Clique na imagem para ampliar |
