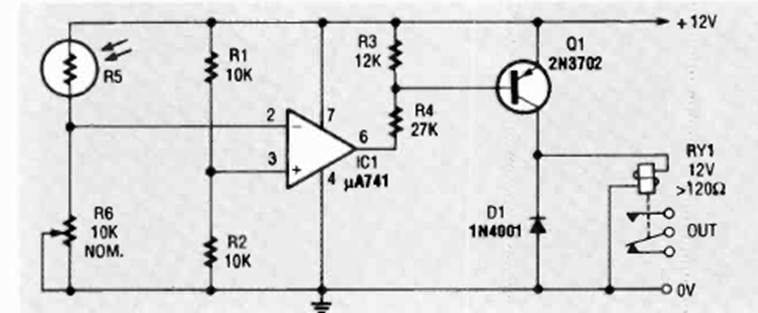

Light Sensitive Relay with 741 (CB25478E)

This circuit for 12 V relays was found in the July 1992 Radio Electronics magazine. The circuit is set at R6.

| Clique na imagem para ampliar |
