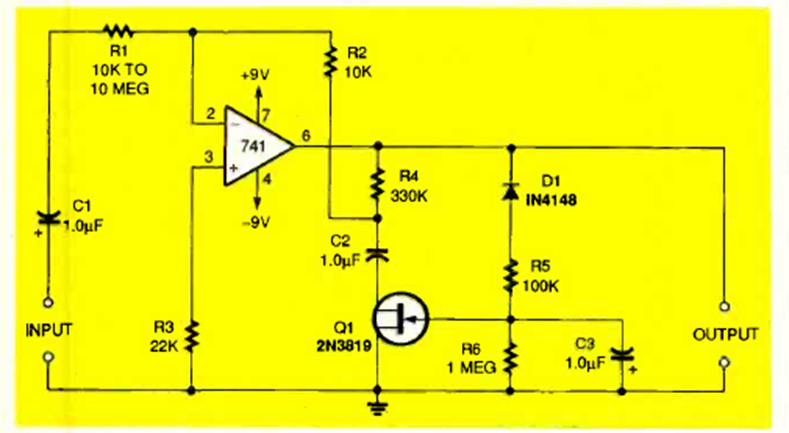

741 Constant Volume Amplifier (CB25832E)

Details
Written by: Newton C. Braga



This circuit was found in the March 1995 issue of Electronics Now magazine. The circuit requires a symmetrical power supply, and the FET is a common general-purpose type.
