Latched Switch (CB25321E)

Details
Written by: Newton C. Braga

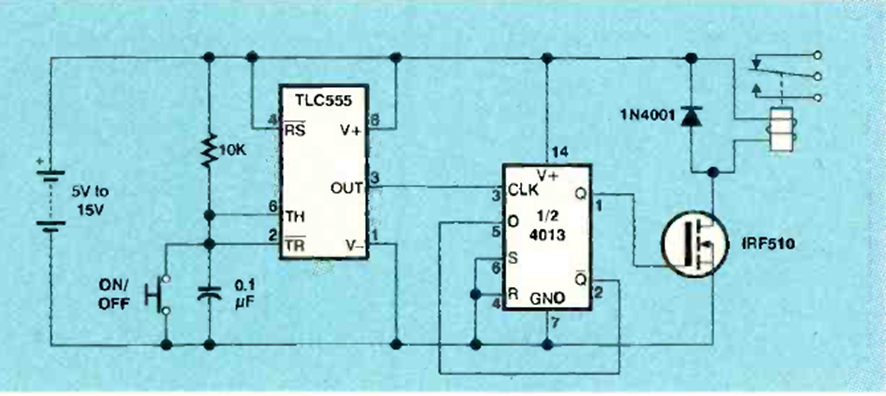

This bistable circuit that drives a relay with a pushbutton was found in the March 1pp6 issue of Electronics Now magazine. A common bipolar with a 1k resistor at the base can be used in place of the FET.
