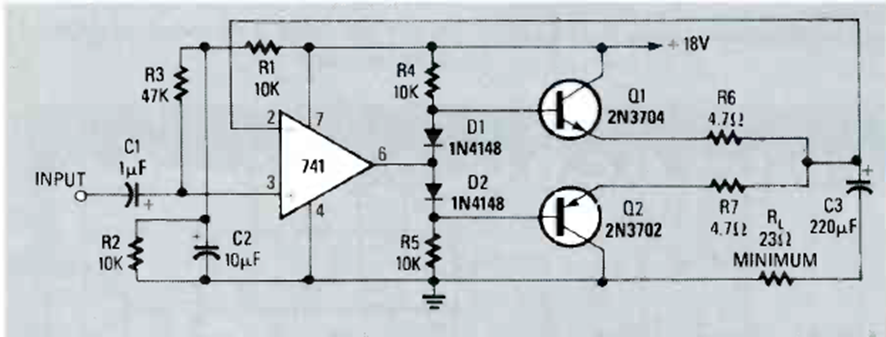

This circuit is the version of the previous circuit with a single source. The transistors are general-purpose. We found it in the magazine Radio Electronics of March 1990.
| Clique na imagem para ampliar |
741 Amplifier with Single Source of 200 mW (CB25292E)
- Details
- Written by: Newton C. Braga
