LM3600 Amplifier with AGC (CB25149E)

Details: Written by: Newton C. Braga

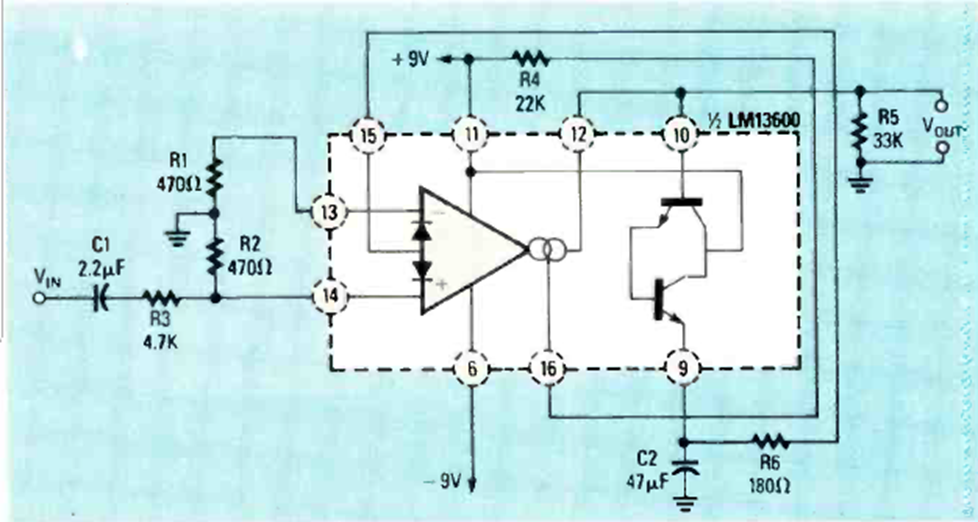

This circuit with automatic gain control was found in the July 1988 issue of Radio Electronics magazine. The circuit is based on a transconductance operational amplifier.
