LM3900 Current Source (CB25178E)

Details
Written by: Newton C. Braga

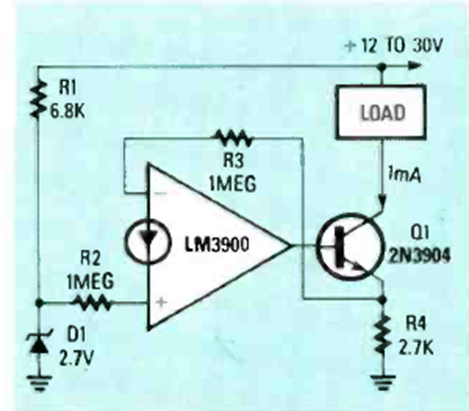

This circuit uses a LM3900 Norton amplifier and a 2.7 V zener diode to supply a current of 1 mA to a load. The LM3900 is a Norton amplifier.
