FM Wireless Microphone (CB25204E)

Details
Written by: Newton C. Braga

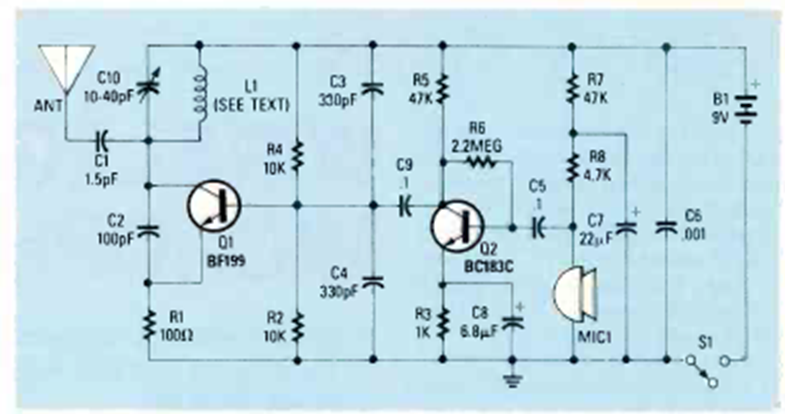

This small transmitter appeared in the March 1989 issue of Radio Electronics magazine. The two-transistor circuit used an electret microphone and had a range of a few dozen meters.




| Clique na imagem para ampliar |
