Phasor Sound (CB25252E)

Details
Written by: Newton C. Braga

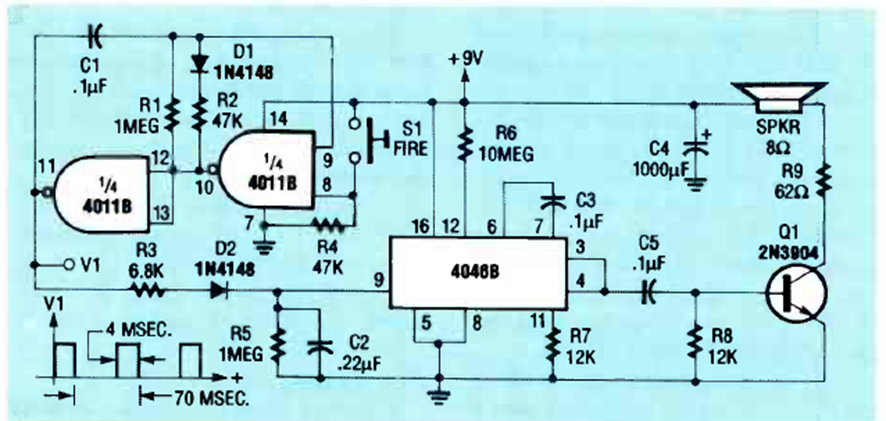

This gun-like sound effects circuit is based on the PLL4066. The circuit was found in the December 1989 issue of Radio Electronics magazine and already includes a small amplification stage.




| Clique na imagem para ampliar |
