5-Range Ammeter for DVM Module (CB25225E)

Details
Written by: Newton C. Braga

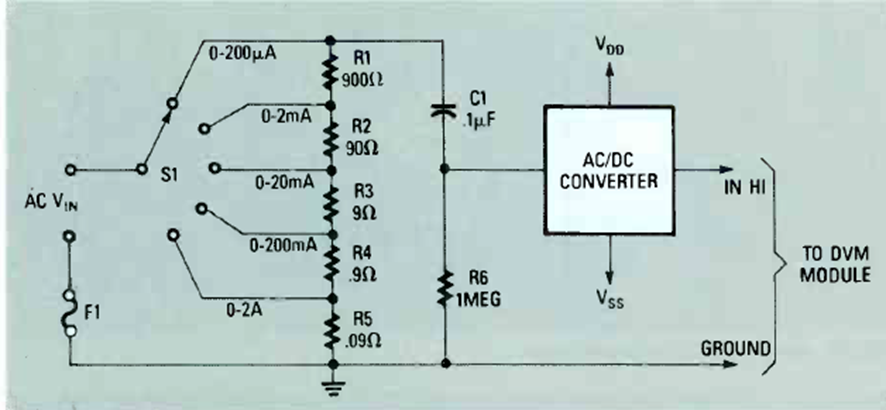

This 5-range current measurement circuit was found in the September 1989 issue of Radio Electronics magazine. It uses an AC/DC converter.
