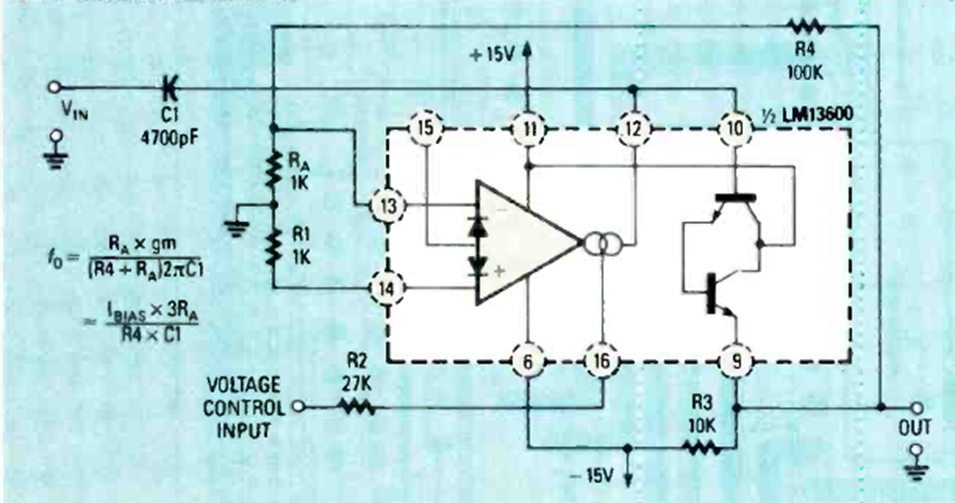

Based on an OTA LM3600 operational amplifier, this circuit was found in the July 1988 issue of Radio Electronics magazine. The range is 6 Hz to 6 kHz and can be changed.
| Clique na imagem para ampliar |
Voltage controlled high pass filter (CB25152E)
- Details
- Written by: Newton C. Braga
