White Noise Generator LM386 (CB25298E)

Details
Written by: Newton C. Braga

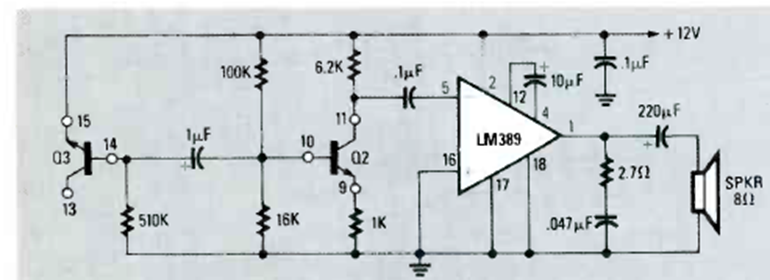

The figure shows a white noise generator circuit that uses a transistor junction to generate the signal. The circuit is from a Radio Electronics magazine from March 1990.




| Clique na imagem para ampliar |
