LM12 Amplifier (CB25205E)

Details
Written by: Newton C. Braga

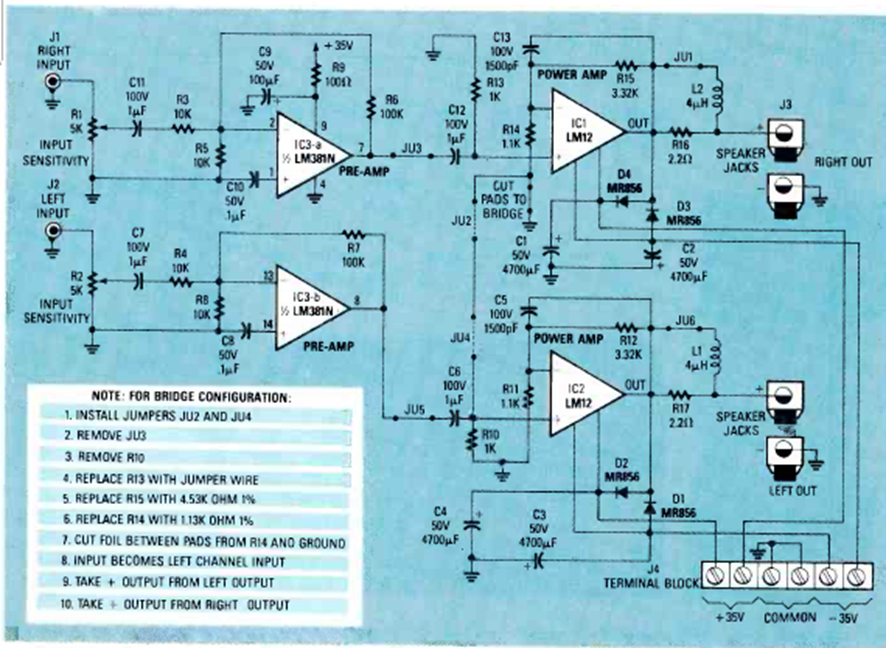

We found this good power amplifier with the LM12 integrated circuit in the March 1989 issue of Radio Electronics magazine. The output power is around 100 W.




| Clique na imagem para ampliar |
