Digital Tire Pressure Gauge (CB25351E)

Details: Written by: Newton C. Braga

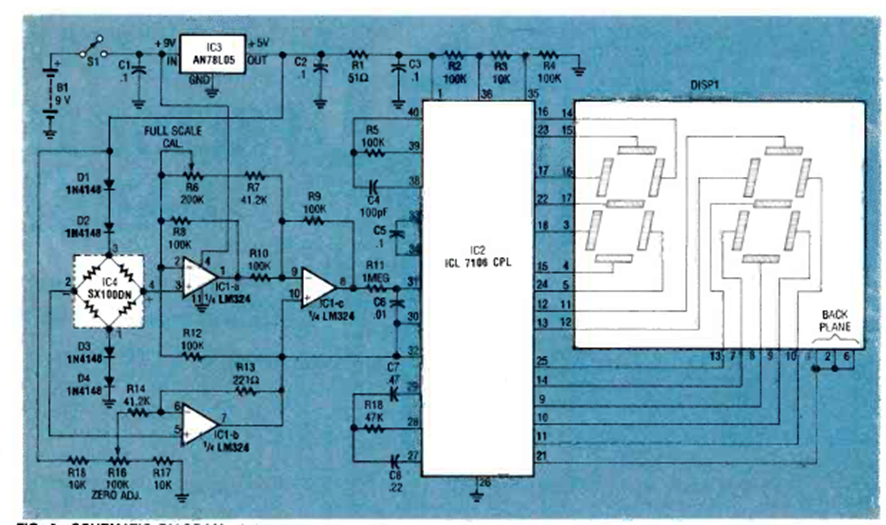

We found this circuit in the August 1990 issue of Radio Electronics magazine. The two-digit circuit uses a pressure sensor and is powered by a 9V battery.

| Clique na imagem para ampliar |
