Adapted from capacitance (CB25301E)

Details
Written by: Newton C. Braga

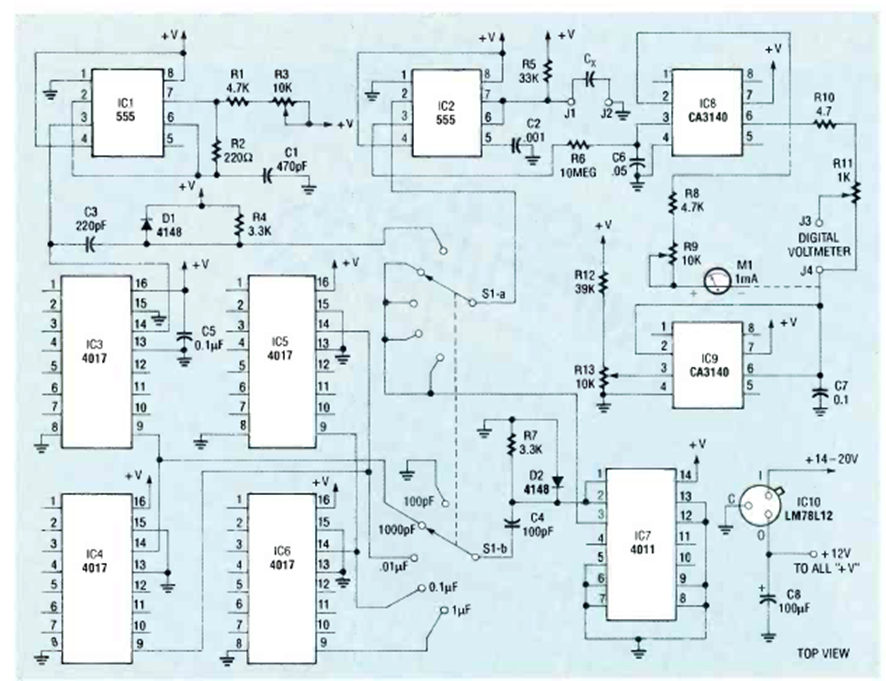

This circuit allows you to read capacitances on a common analog instrument. It is part of an article in the April 1990 Radio Electronics magazine.
