Sine wave generator (CB25129E)

Details
Written by: Newton C. Braga

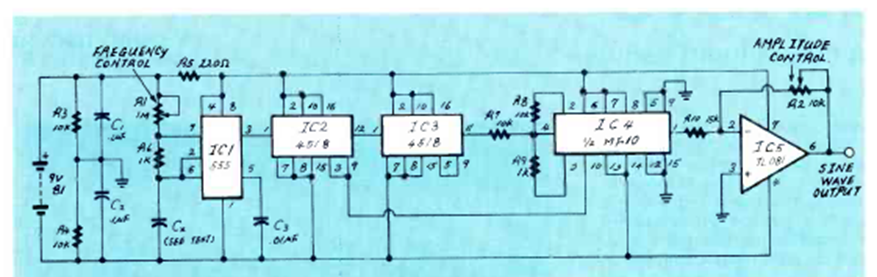

This circuit generates sinusoidal signals that depend on the input oscillator. The circuit is from a Radio Elecrtronics from April 1988. The signals are in the range of a few hundred kilohertz.
