FM Generator 4066 (CB25253E)

Details: Written by: Newton C. Braga

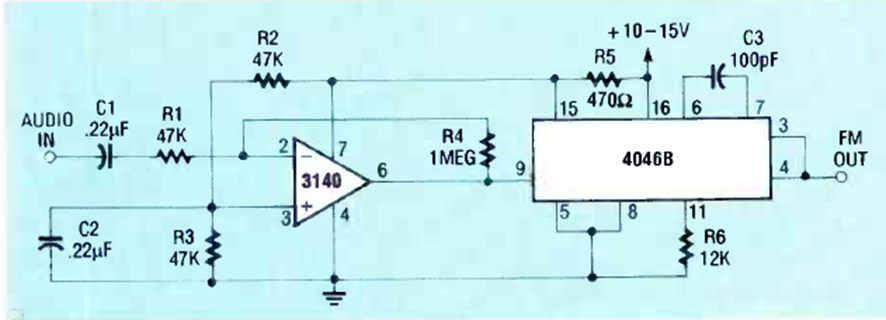

Using a 4046 PLL we found this circuit in the December 1989 issue of Radio Electronics magazine. The circuit operates at 220kHz, but this frequency can be changed by changing C3.
