4046 Triggered VCO (CB25250E)
- Details
- Written by: Newton C. Braga

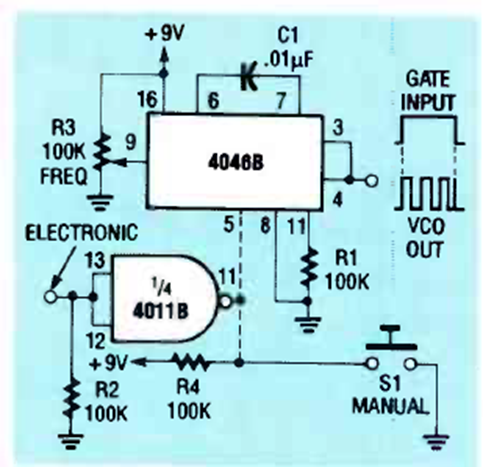

This wideband circuit with the 4046 PLL was found in the December 1989 Radio Electronics magazine. The capacitor C1 can be changed to the desired frequency range.
