Wireless Sound Transmitter (CB25156E)

Details: Written by: Newton C. Braga

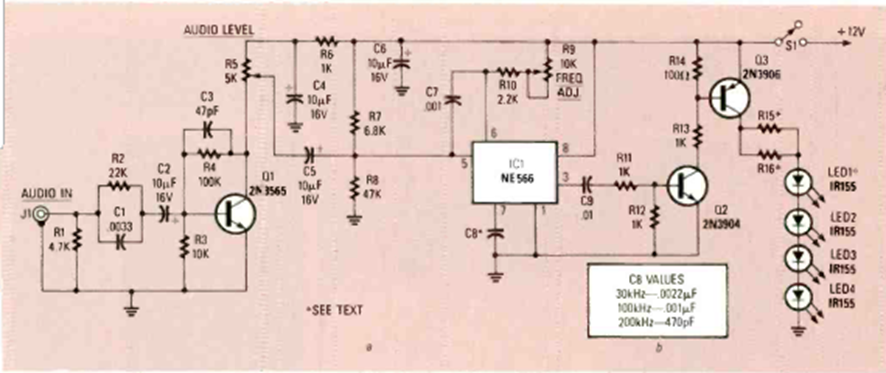

This wireless infrared remote sound transmitter is from an article published in the August 1988 issue of Radio Electronics magazine. The circuit can be built using modern, higher-power LEDs.

| Clique na imagem para ampliar |
