Versatile Astable Multivibrator (CB25329E)

Details
Written by: Newton C. Braga

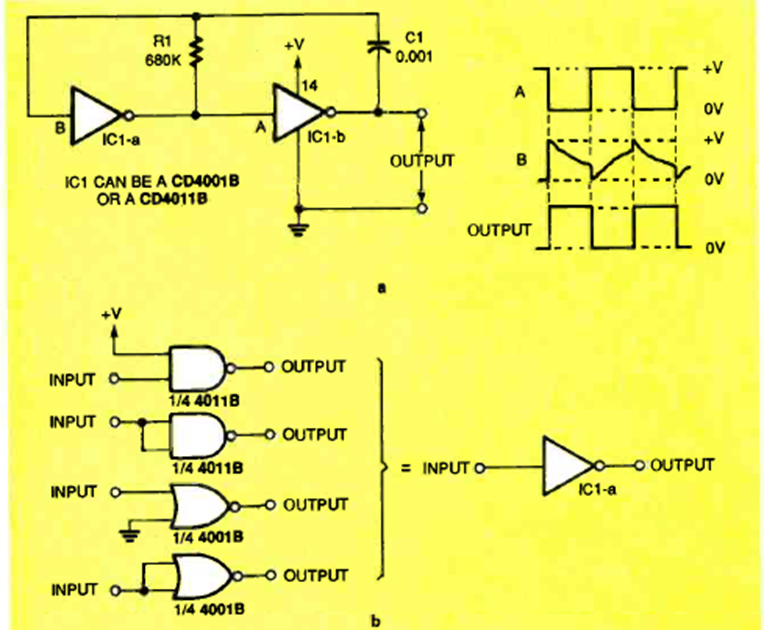

This circuit, which can be built with several CMOS gates, was found in the March 1996 issue of Electronics Now magazine. The circuit has the base frequency determined by R1 and C1.
