NE602 Frequency Doubler (CB25303E)

Details
Written by: Newton C. Braga

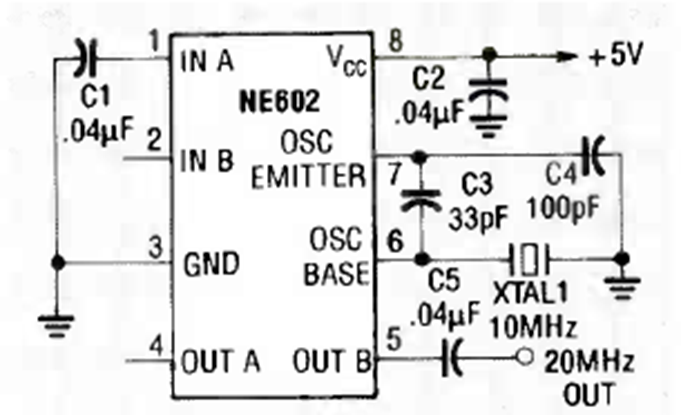

This circuit provides a signal that is twice the frequency of the input signal. The circuit was found in the April 1990 issue of Radio Electronics magazine.
