CA3080 Amplifier (CB25131E)

Details
Written by: Newton C. Braga

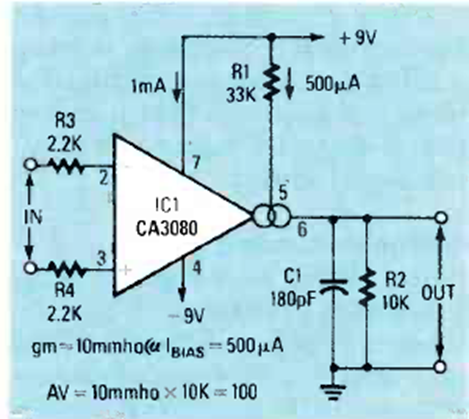

This amplifier with an OTA has a gain of 40 dB. The power supply must be symmetrical. Found in Radio Electronics, May 1988.
