Duty Cycle CMOS Astable (CB25330E)

Details: Written by: Newton C. Braga

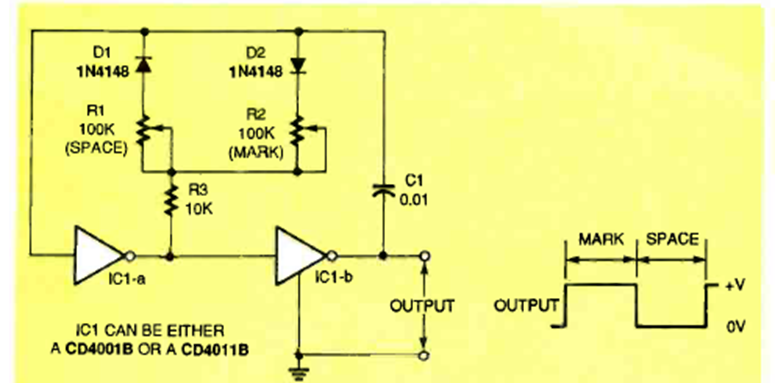

We found this circuit in the March 1995 issue of Electronics Now magazine. The circuit has a frequency range determined by C1 and R3. The signal generated is square.
