Amplified Speaker (CB25159E)

Details: Written by: Newton C. Braga

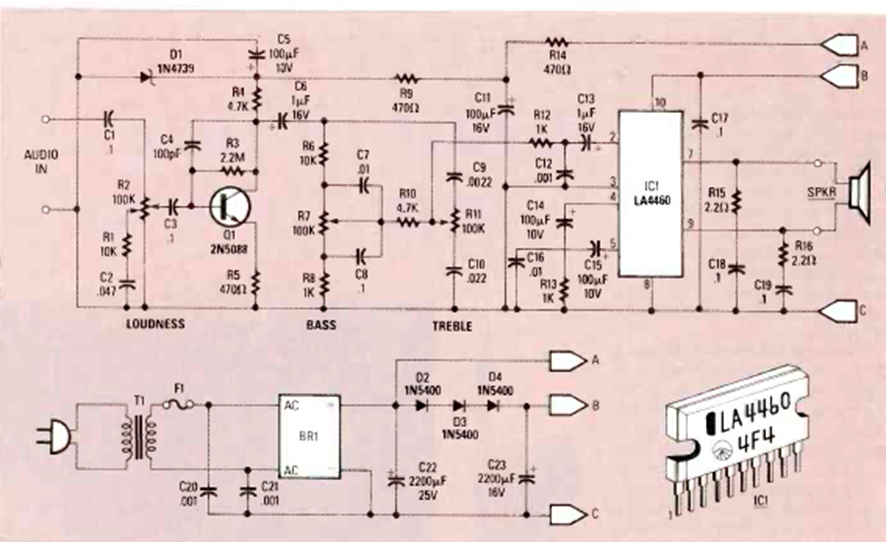

This amplified speaker is from a Radio Electronics from September 1988. The power integrated circuit is from that time and the other components are still common today.
