CA3080 Variable Gain Amplifier (CB25133E)

Details
Written by: Newton C. Braga

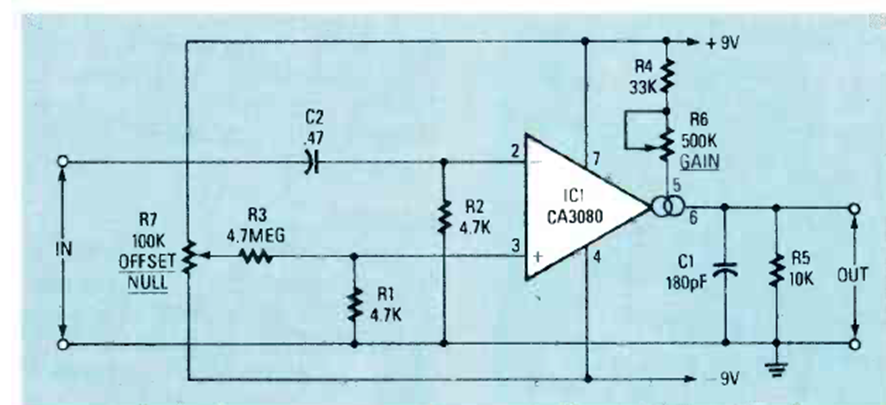

This amplifier with gains between 5 and 100 was found in the May 1988 issue of Radio Electronics magazine. The circuit requires a symmetrical power supply.
