LM390 1W Amplifier (CB25306E)

Details
Written by: Newton C. Braga

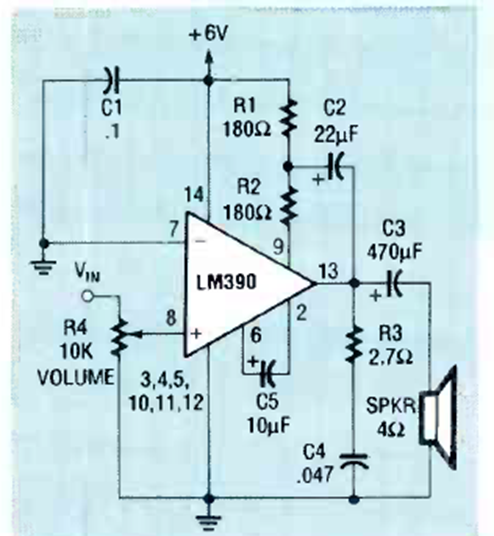

This small audio amplifier is based on the LM390 with a minimum of external components. We found it in the April 1990 issue of Radio Electronics magazine.
