Precision Tone Switch 4046 (CB25256E)

Details
Written by: Newton C. Braga

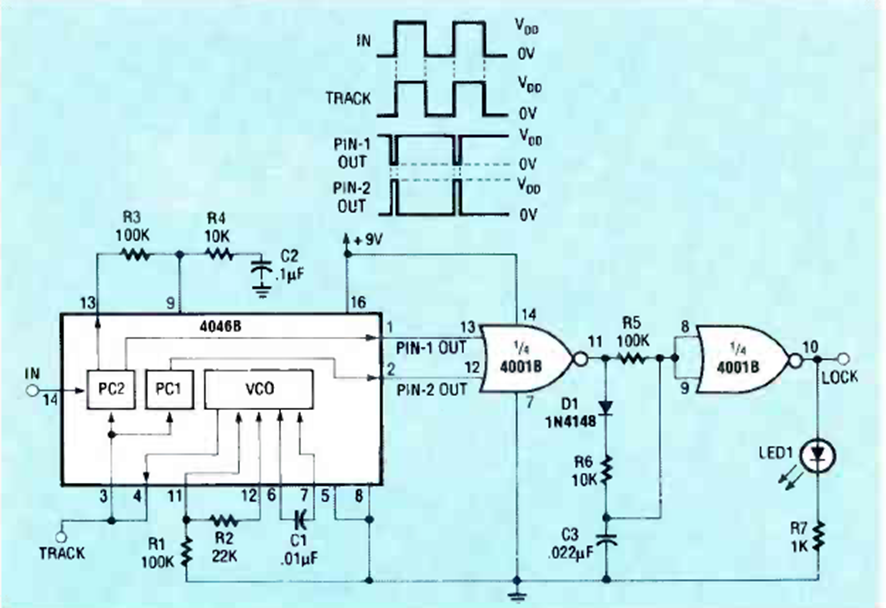

Using a 4046 PLL this circuit recognizes a 1.6 to 1.8 kHz tone by driving an output LED. The circuit is from a Radio Electronics from December 1989.




| Clique na imagem para ampliar |
