CA3080 Amplitude Modulator (CB25134E)

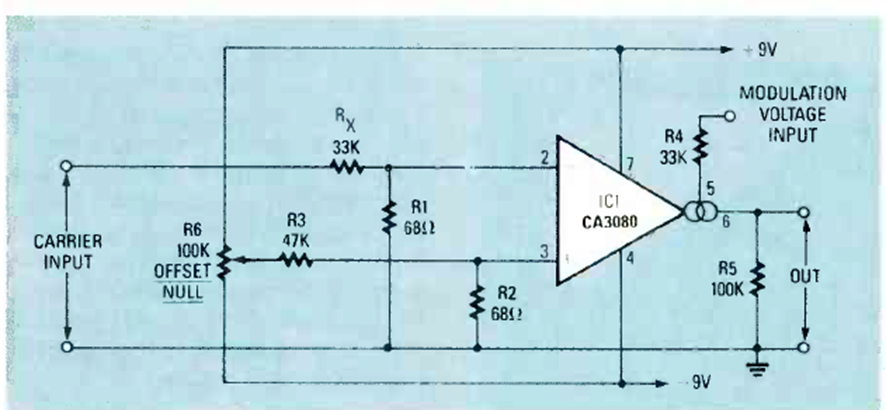

This 2-quadrant modulator circuit was found in the May 1988 issue of Radio Electronics magazine. The CA3080 is an OTA operational amplifier.
