Spy Detector (CB25214E)

Details
Written by: Newton C. Braga

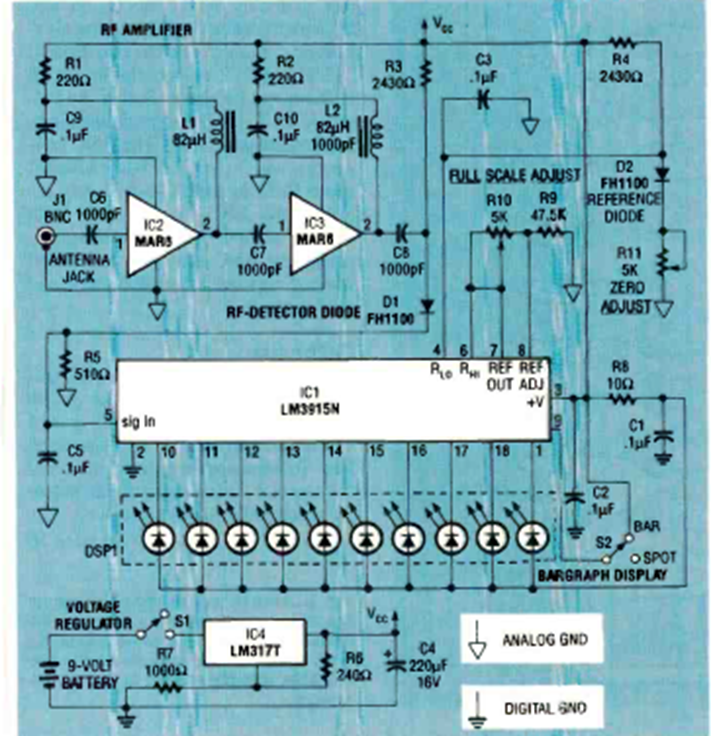

This interesting sensor for RF signals was found in an article in the June 1989 Radio Electronics magazine. It is a field strength meter with an LED bargraph indicator.




| Clique na imagem para ampliar |
