LM390 Intercom (CB25310E)

Details
Written by: Newton C. Braga

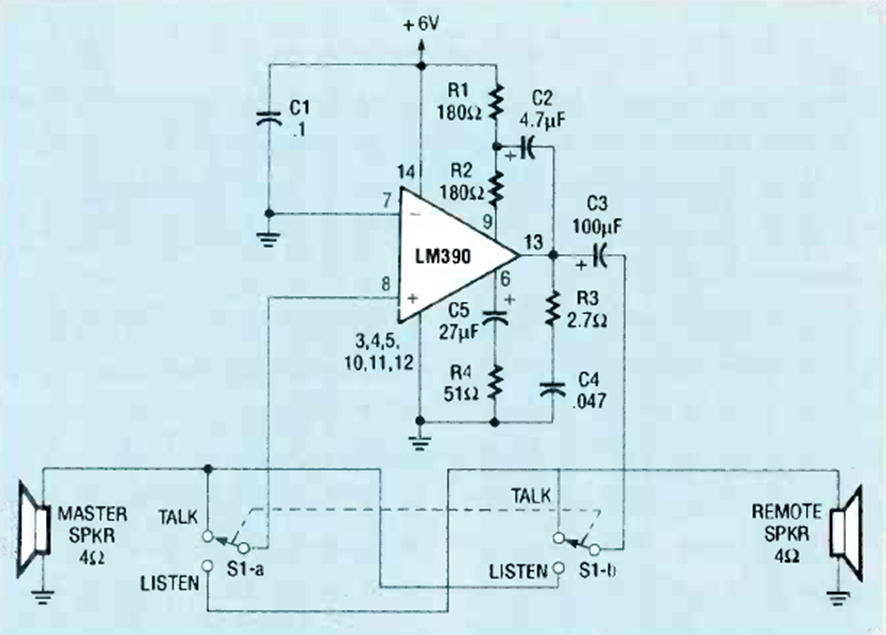

This two-channel wired intercom was found in the April 1990 issue of Radio Electronics magazine. Maximum cable distance depends on cable thickness.




| Clique na imagem para ampliar |
