Shield for triac (CB25259E)

Details
Written by: Newton C. Braga

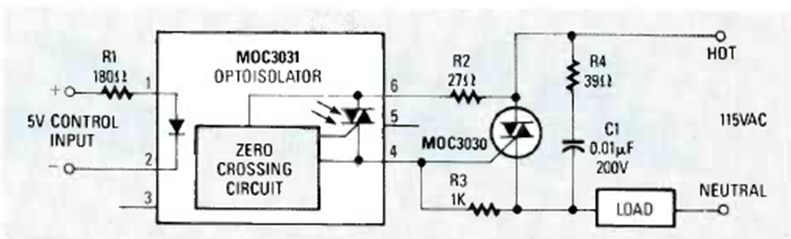

This circuit uses an optocoupler with a phototriac or optotriac to drive an external triac. The circuit is from a Radio Electronics magazine from December 1989.
