Water Temperature Gauge (CB25337E)

Details
Written by: Newton C. Braga

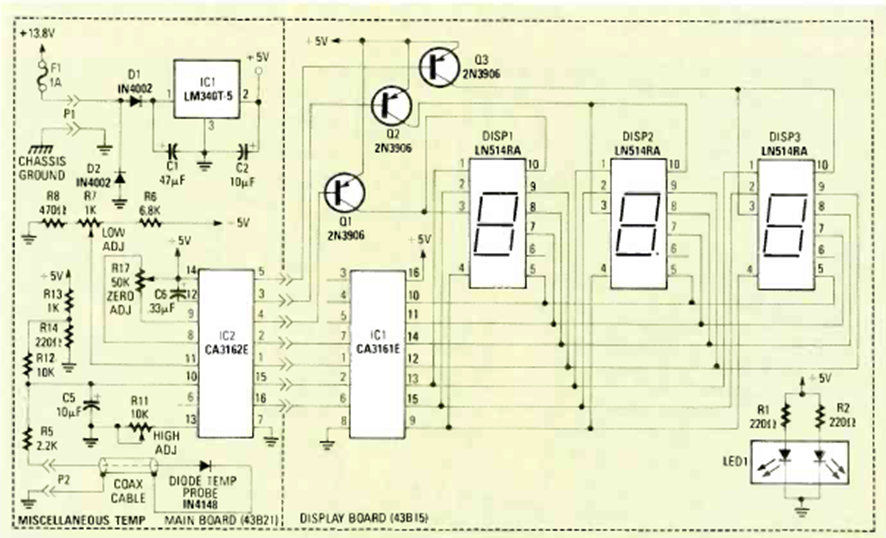

This 3-digit digital gauge was found in the July 1900 issue of Radio Electronics magazine. The circuit is based on the CA3161 and CA3162 A/D converters of the time.
